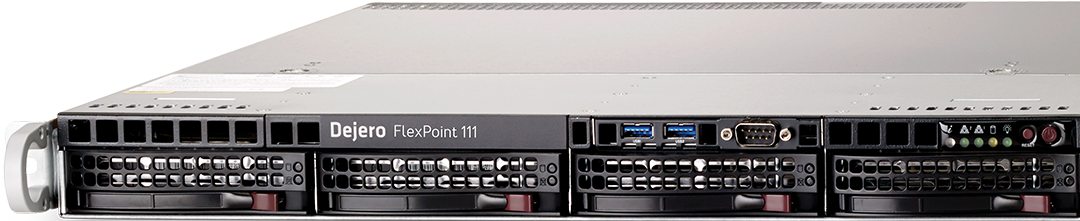

Dejero FlexPoint 111

HEVC capable rack-mounted transceiver

Dejero FlexPoint111

The Dejero FlexPoint 111 transceiver is an integrated encoder and decoder that transmits and receives high-quality video in resolutions up to 1080p 50/60.

FlexPoint 111 is designed to transport broadcast quality video over Dejero’s virtual blended network. It serves as both a transmission source and as a receiver, and is ideal for smaller stations that require only a single input and output, installation in a production vehicle, or deployed to send and receive feeds across the Dejero MultiPoint video distribution network. Whether used for live broadcasts or transporting recorded content, FlexPoint 111 integrates seamlessly into your contribution and distribution workflows.

Versatility

READY FOR ANYTHING

Useful in a variety of applications, FlexPoint 111 can be used in point-to-point and point-to-multipoint IP-based video distribution networks, remote production scenarios, and deployed in smaller stations.

Reliabilty

ENGINEERED FOR RELIABILITY

Built with industry-leading components and redundancy, we source and use quality parts to ensure our equipment performs as promised and lives up to our high-quality standards.

Performance

PERFORMS UNDER PRESSURE

Capable of achieving performance of up to 20 Mb/s, FlexPoint 111 meets the requirements of the most demanding scenarios including high-motion content such as sports.

Manage

ALWAYS IN CONTROL

Monitor performance and remotely configure a fleet of FlexPoint transceivers with our cloud-based management system that gives you ultimate control from your web browser.

PRODUCT SPECIFICATIONS

VIDEO

FORMATS 480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/30/50/59.94/60
ENCODING AND DECODING MPEG-4 (H.264 AVC) and H.265 HEVC, adaptive bitrate
OUTPUTS HD/SD-SDI
RECORDING 300+ hours of HD (6 Mb/s)

AUDIO

ENCODING AND DECODING Live: Opus 48 kHz, 2-, 4-, or 8-channel, 16-128 kb/s adaptive bitrate
Recorded Clips: MPEG-2 48 kHz, 2- or 4-channel audio, 256 kb/s
INPUT AND OUTPUT Embedded SDI

NETWORK CONNECTIONS

ETHERNET 2 x 1 Gb/s port for LAN/WAN

POWER

SUPPLY 2 x 100-240 VAC 50/60 Hz AC
CONSUMPTION Max. 400 W

PHYSICAL

DIMENSIONS 1U 19” rack-mount
4.3 x 43.7 x 50.3 cm (1.7” H x 17.2” W x 19.8” D)
WEIGHT 9.5 kg (20.8 lbs)
CONNECTORS Genlock (BNC), SDI In (BNC), SDI Out (BNC), 2 x RJ45 Ethernet, IFB (3.5 mm audio jack), 2 x USB 2.0 (front), 4 x USB 2.0 (rear), VGA



SDI IN SDI IN SDI OUT
IFB
Ethernet Ethernet
GENLOCK SDI IN SDI OUT IFB 2 x ETHERNET

KEY FEATURES

SIMULTANEOUS INPUT AND OUTPUT

HD/SD-SDI output and Internet connectivity via RJ45 Ethernet jacks



CAPTURE HIGH MOTION CONTENT

20 Mb/s video encoding and transmission; perfect for high-motion content like sports



QUAD-CORE INTEL XEON PROCESSOR

High performance processing designed for all day, every day reliability



DATA REDUNDANCY

RAID protection of stored data utilizing two 1 TB hard drives, front access to hot-swappable drives



HOT-SWAPPABLE POWER

Dual redundant 400 W power supplies continue to provide power if one power supply fails and is replaceable while the FlexPoint is in use



CLOSED CAPTIONING SUPPORT

Compliant with CEA-708-B and SMPTE 334-2000 specifications.



VIDEO SYNCHRONIZATION

Genlock input accepts black burst or tri-sync reference signals



MULTICHANNEL AUDIO

Choose 2, 4, or 8 different simultaneous audio inputs



DEJERO CONTROL

Geolocate field units, preview feeds, route content, and monitor usage and performance using our cloud-based management system



Design, features and specifications are subject to change without notice.

Looking for a printable copy of the Dejero FlexPoint 111 product brief?

Download the product brief
