Dejero PathWay

HEVC capable rack-mounted encoder/transmitter

Dejero PathWay

PathWay is an HEVC capable adaptive bitrate encoder/transmitter in a 1U rack-mounted form-factor that delivers exceptional picture quality with low latency.

Designed for installation in newsgathering and remote production vehicles or in fixed locations, you have the option of blending cellular connectivity with an Ethernet (LAN/WAN or satellite) or Wi-Fi connection. PathWay can also be used as a backup transmission solution to ensure broadcast continuity in the event a station loses its primary transmission capability. It’s also great for enabling feeds from remote studios and fixed-location cameras.

HEVC

HEVC (H.265) ENCODING

Deliver higher quality video at lower bitrates; especially helpful in challenging cellular network conditions when bandwidth is limited.

In-Vehicle

BROADCAST WHILE MOVING

Connect to an array of external antennas mounted on a vehicle to go live while moving. Seamlessly switch from cellular to satellite, or CellSat transmission when on the scene.

Reliabilty

REMARKABLE PERFORMANCE

Blending up to eight network connections, PathWay reliably delivers exceptional picture quality with low latency, even in challenging bandwidth conditions. Get your live shot where others can’t.

Versatility

MULTI-PURPOSEFUL

Cost-effective alternative for remote live feeds from fixed-location cameras. Also provides greater flexibility as to where you can place those cameras.

PRODUCT SPECIFICATIONS

VIDEO

RESOLUTIONS 480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/30/50/60
ENCODING MPEG-4 (H.264 AVC and H.265 HEVC), adaptive bitrate
BITRATE INPUTS HD/SD-SDI, HDMI (2.0a)
RECORDING Up to 32 hours of HD (85 GB of storage)

AUDIO

ENCODING Live: Opus 48 kHz, 2-, 4-, or 8-channel, 16-128 kb/s adaptive bitrate.
Recording: MPEG-2 48 kHz, stereo, 256 kb/s
INPUTS Embedded (SDI, HDMI)

NETWORK CONNECTIONS

CELLULAR Up to 6 x 3G/4G/LTE
Wi-Fi Dual-band wireless (802.11 a/b/g/n/ac) (Optional)
Open, WEP, WPA-PSK and WPA2-PSK
ETHERNET 2 x 1 Gb/s port for LAN, WAN, and satellite (including BGAN, Ku-band, Ka-band)

USER INTERFACE

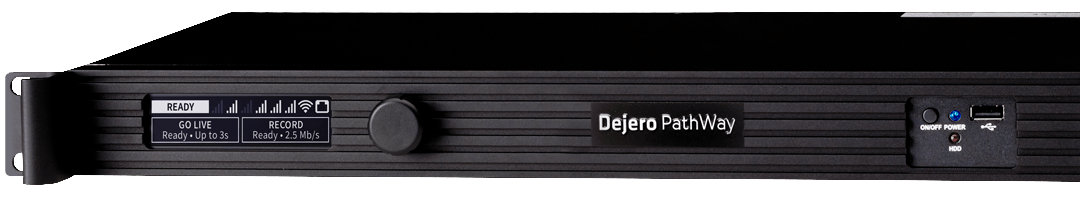

CONFIGURATION AND MONITORING Front panel dial and OLED screen
Connected external display (DP or HDMI)
Web browser (Dejero Control)

POWER

SUPPLY 100-240 VAC 50/60 Hz AC
CONSUMPTION Max. 180 W

PHYSICAL

DIMENSIONS 1U 19” rack-mount
42 x 44.5 x 4.5 cm (16.5 x 17.5 x 1.75 inches)
WEIGHT 4.2 kg (9.2 lbs)
OPERATING TEMPERATURE -10°C to 45°C (14° F to 113° F) qualified operation
20-90% RH (non-condensing)
CONNECTORS SDI In (BNC), HDMI In, 2 x RJ45, 1 USB 2.0 (front), 4 x USB 3.0 (rear), 3.5 mm audio jack, DisplayPort out, HDMI out



SDI IN HDMI IN Ethernet Ethernet
SDI IN HDMI IN 2 x ETHERNET



MODELS PATHWAY E
Provides Ethernet (LAN/WAN and satellite) and Wi-Fi connectivity
PATHWAY EC
Adds integrated modems for cellular connectivity

KEY FEATURES

ADAPTIVE HEVC

H.265/HEVC compression provides better picture quality at low bitrates



NETWORK BLENDING

Blend up to eight network connections including 3G/4G/LTE, Wi-Fi, Ethernet, and portable satellite



CAPTURE HIGH-MOTION CONTENT

20 Mb/s when connected via Ethernet



SELECTABLE LATENCY

1.5 / 3.0 / 8.0 seconds or custom preset from 0.8–20 seconds



DUAL ENCODING

Simultaneously record and live transmit with 85 GB of storage capable of up to 32 hours of HD recording



VEHICLE-MOUNTED

Easily connects to external antennas for in-vehicle solutions



IFB

Communicate with talent in the field using IFB



BACKWARDS COMPATIBILITY

Fully backward compatible with non-HEVC Dejero receivers



MULTICHANNEL AUDIO

Choose 2, 4, or 8 different simultaneous audio inputs



AUTO DETECTION

Automatic video input and format detection



USER FRIENDLY

Dial and OLED screen make navigation easy



COMMITTED TO SAFETY

Committed to safety: FCC/IC/CE certified



DEJERO CONTROL

Geolocate field units, preview feeds, route content, and monitor usage and performance using our cloud-based management system



Design, features and specifications are subject to change without notice.
