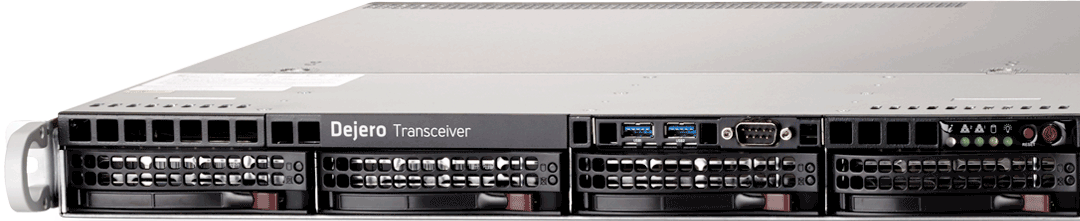

Dejero Transceiver

Rack-mounted encoder and decoder

Dejero Transceiver

Dejero’s Transceiver is an integrated encoder and decoder that transmits and receives high-quality video in resolutions up to 1080p.

The rack-mountable unit is designed to transport broadcast quality video over Dejero’s blended network including the Dejero MultiPoint IP video distribution network. Whether used for live broadcasts or transporting recorded content, the Transceiver integrates seamlessly into your IP video workflow.

Versatility

READY FOR ANYTHING

Useful in a variety of applications, the Transceiver is most commonly used in point-to-point and point-to- multipoint communications, as well as in remote production solutions.

Reliabilty

ENGINEERED FOR RELIABILITY

Built with industry-leading components, we source and use quality parts to ensure our equipment performs as promised and lives up to our high-quality standards.

Performance

PERFORMS UNDER PRESSURE

Capable of achieving performance of up to 20 Mb/s, the Transceiver can meet the requirements of the most demanding scenarios—especially for high-motion content like sports.

Manage

ALWAYS IN CONTROL

Monitor performance and remotely configure the Transceiver with our cloud-based management system that gives you ultimate control from your web browser.

PRODUCT SPECIFICATIONS

VIDEO

FORMATS 480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/30
ENCODING AND DECODING MPEG-4 (H.264 AVC), adaptive bitrate
OUTPUTS HD/SD-SDI
RECORDING 300+ hours of HD (6 Mb/s)

AUDIO

ENCODING AND DECODING Live: Opus 48 kHz, 2-, 4-, or 8-channel, 16-128 kb/s adaptive bitrate
Recorded Clips: MPEG-2 48 kHz, 2- or 4-channel audio, 256 kb/s
INPUT AND OUTPUT Embedded SDI

NETWORK CONNECTIONS

ETHERNET 2 x 1 Gb/s port for LAN/WAN

POWER

SUPPLY 2 x 100-240 VAC 50/60 Hz AC
CONSUMPTION Max. 800 W (2 x 400 W redundant)

PHYSICAL

DIMENSIONS 1U 19” rack-mount
4.3 x 43.7 x 50.3 cm (1.7” H x 17.2” W x 19.8” D)
WEIGHT 9.5 kg (20.8 lbs)
CONNECTORS Genlock (BNC), SDI In (BNC), SDI Out (BNC), 2 x RJ45 Ethernet, IFB (3.5 mm audio jack), 2 x USB 2.0 (front), 4 x USB 2.0 (rear), VGA



SDI IN SDI IN SDI OUT
Ethernet Ethernet
GENLOCK SDI IN SDI OUT 2 x ETHERNET

KEY FEATURES

SIMULTANEOUS INPUT AND OUTPUT

HD/SD-SDI output and Internet connectivity via RJ45 Ethernet jacks



CAPTURE HIGH MOTION CONTENT

20 Mb/s video encoding and transmission; perfect for high-motion content like sports



RACK-MOUNTABLE

Convenient 1U rack-mount form factor, 1.7” H x 17.2” W x 19.85” D (43 x 437 x 504 mm)



QUAD-CORE INTEL XEON PROCESSOR

High performance processing designed for all day, every day reliability



DATA REDUNDANCY

RAID protection of stored data utilizing two 1 TB hard drives, front access to hot-swappable drives



HOT-SWAPPABLE

Dual redundant 400 W power supplies continue to provide power if one power supply fails, replaceable while the Transceiver is in use



CLOSED CAPTIONING SUPPORT

Compliant with CEA-708-B and SMPTE 334-2000 specifications.



VIDEO SYNCHRONIZATION

Genlock input accepts black burst or tri-sync reference signals



MULTICHANNEL AUDIO

Choose 2, 4, or 8 different simultaneous audio inputs



DEJERO CONTROL

Geolocate field units, preview feeds, route content, and monitor usage and performance using our cloud-based management system



Design, features and specifications are subject to change without notice.
