Dejero WayPoint 204

High-quality SMPTE ST 2110 or MPEG-TS four-output receiver

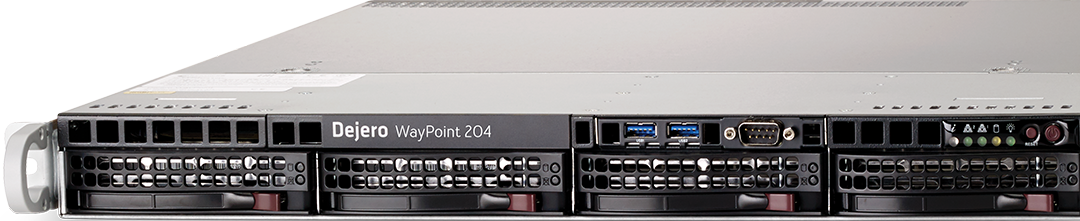

Dejero WayPoint 204

The WayPoint 204 receiver reconstructs video transported over multiple IP connections from Dejero transmitters, decodes HEVC or AVC, and outputs to SMPTE ST 2110 or MPEG-TS workflows.

WayPoint 204 has been engineered for broadcast-quality reliability, equipped with dual-redundant power supplies and redundant storage RAID hard drives giving you peace of mind. Decoding up to four simultaneous ingests in a single 1U device, and with multiple output options, you gain flexibility and save valuable rack space in your facility.

HEVCEFFICIENCY

HEVC (H.265) DECODING

Deliver higher quality video at lower bitrates; especially helpful in challenging cellular network conditions when bandwidth is limited.

Auto-Detection-IconAUTO-DETECTION

CODEC AUTO-DETECTION

Compatible with any Dejero transmitter, WayPoint receivers auto-detect whether the incoming transmission is HEVC (H.265) or AVC (H.264) and decodes accordingly.

SavingsSAVINGS

SAVE RACK SPACE

A single device receives and outputs transmissions from up to four different sources simultaneously—optimizing valuable rack space in your facility.

Redundancy-1RELIABILITY

BUILT IN REDUNDANCY

Engineered for reliability, WayPoint receivers use industry-proven components including redundant, hot-swappable power supplies and RAID storage.

PRODUCT SPECIFICATIONS

SMPTE ST 2110 OUTPUT

VIDEO Resolutions: 480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/30/50/59.94/60
AUDIO 2-, 4-, or 8-channel for live transmission
Note: Transmitters sending recorded clips will send 2- or 4-channels of audio.

MPEG-TS OUTPUT

VIDEO Formats: 480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/30
Bitrate: Constant, up to 30 Mb/s
Codec: MPEG-4
AUDIO 2- or 4-channel
Bitrate: Constant, up to 320 Kb/s for each channel pair
Codec: AAC-LC
TRANSPORT Protocols: UDP, RTP

VIDEO NETWORK CONNECTIONS

SFP 2 x 10 Gb/s

DATA NETWORK CONNECTIONS

ETHERNET 2 x 1 Gb/s port for LAN/WAN

POWER

REDUNDANCY 2 x 100-240 VAC 50/60 Hz AC
CONSUMPTION Max. 400 W

PHYSICAL

DIMENSIONS 1U 19” rackmount, 4.3 x 43.7 x 50.3 (1.7” H x 17.2” W x 19.8” D)
WEIGHT 9.5 kg (20.8 lbs)
OPERATING TEMPERATURE 10° C to 35° C (50° F to 95° F)
STORAGE 300+ hours of HD (6 Mb/s)
INTERFACES 2 x SFP, 2 x RJ45 Ethernet, 4 x IFB (quad ¼” TRS connectors),VGA



SFPSFP IFBIFB
IFBIFB
Ethernet Ethernet
SFP x 2 IFB x 4 ETHERNET x 2

KEY FEATURES

4x OUTPUTS

Supports four outputs to SMPTE ST 2110 or MPEG-TS over IP playout workflows



BALANCED IFB

Four channels of balanced IFB for superior audio quality



HIGH PERFORMANCE

Quad-core Intel Xeon processor designed for all day, every day reliability



FRONT ACCESS STORAGE

Two hot-swappable (front access) 1 TB hard drives with RAID protection



BUILT-IN REDUNDANCY

Dual redundant power supplies, replaceable while WayPoint is in use



BLACK BURST AND TRI-SYNC

Genlock input accepts black burst or tri-sync reference signals for video synchronization



BACKWARDS COMPATIBILITY

Fully compatible with all non-HEVC Dejero transmitters



MULTICHANNEL AUDIO

Choose 2, 4, or 8 different simultaneous audio outputs



DEJERO CONTROL

Route content to any WayPoint output with our cloudbased management system



Design, features and specifications are subject to change without notice.
